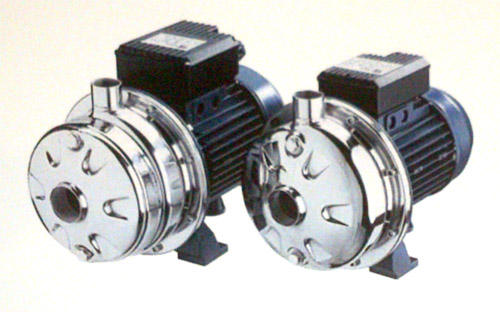

The advanced stamped technology is applied now also in the new OPEN IMPELLER centrifugal pumps having the volute casing as integral part of the pump body. The DWO are pumps extremely versatile: the particular costruction of impeller allows to handle liquids with floating solids; in this case the suitable mechanical seal must be used. Moreover, the special feature at inlet and outlet allows to fit the pumps both to threaded pipes or to flexible pipes.
Pump
Max working pressure: 8 bar
Max water temperature:
CDX: 90°C (except CDX 70/05, CDX 70/07, CDX 90/10)
CDX 70/05, CDX 70/07, CDX 90/10: 60°C.
CDXH: 110°C.
Motor
T.E.F.C. (Totally enclosed fan cooled motor)
Class F insulation
IP 55 protection
Continuous duty
Single phase version.
Power from 0,5 till 2HP
Permanent split capacitor
Built-in over load motor protector with automatic reset
Three phase version
Power from 0,5 to 5.
Overload protection to be provided by the user
Other voltages and frequency upon request.
Applications include
Civil/domestice: water supply systems, pressure boosting sytems, air conditioning & heating
Agriculture: Sprinkler or flow irrigation
Industrial: Water Supply systems, Washing plants, Transfer of non aggressive fluids
EBARA Fluid Handling Pumps, offer a comprehensive line of corrosion resistant formed stainless steel pumps that include end suction centrifugal, multistage, and submersible sump, effluent, and sewage pumps.
