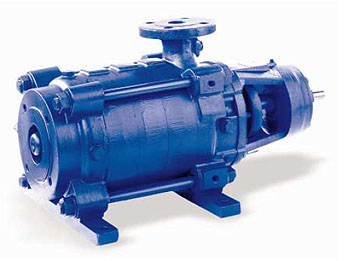

The Multitec is one of the most versatile pumps in KSB's extensive range. A large choice of materials and designs ensures an ideal match for the fluid in question. There are also seven installation options: in horizontal design with baseplate or as close-coupled pump, with axial or radial inlet, with the drive on the suction or discharge side, and in vertical close-coupled design.

Multitec is easy to integrate into any system. So on-site fitting work stays at a minimum.

High-pressure pump in ring-section design.

Equipped with special suction impellers, its suction performance and low NPSH values are outstanding, which translates into optimum efficiency at low energy and operating costs.

Multitec, the all-rounder made by KSB, is designed for industrial applications, water supply, irrigation, power stations, heating, firefighting, reverse osmosis, snow guns and washing plants. It is suitable for pumping hot water, boiler feed water, condensate, distillate, solvents, lubricants, fuels, and many other fluids.

Applications include:
• Water supply
• Drinking water supply (ACS)
• Industry (Atex)
• Irrigation
• Power stations
• Heating, filtering, fire-fighting, reverse osmosis, snow guns, washing plants

Technical data:
Size: DN 32 to 150
Max. capacity: 850 m3/h
Max. head: 630 m
Fluid temperature: - 10 to +200 °C
Max. pump discharge pressure: 63 bar

Materials:
Cast iron, bronze, carbon steel, alloyed
carbon steel, duplex stainless steel
